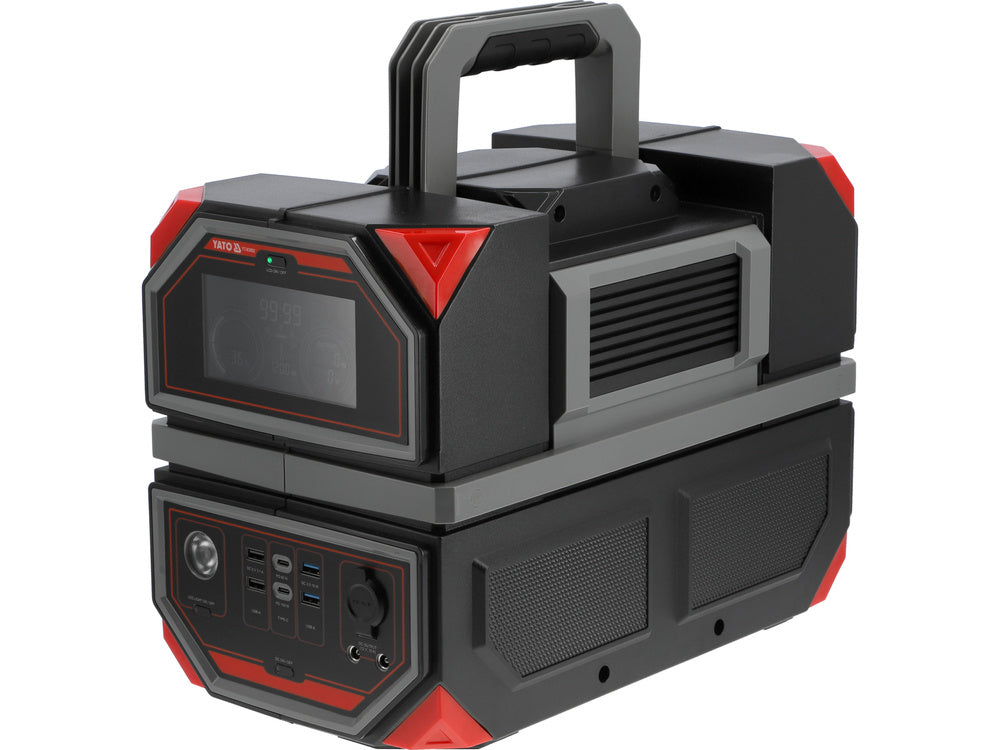

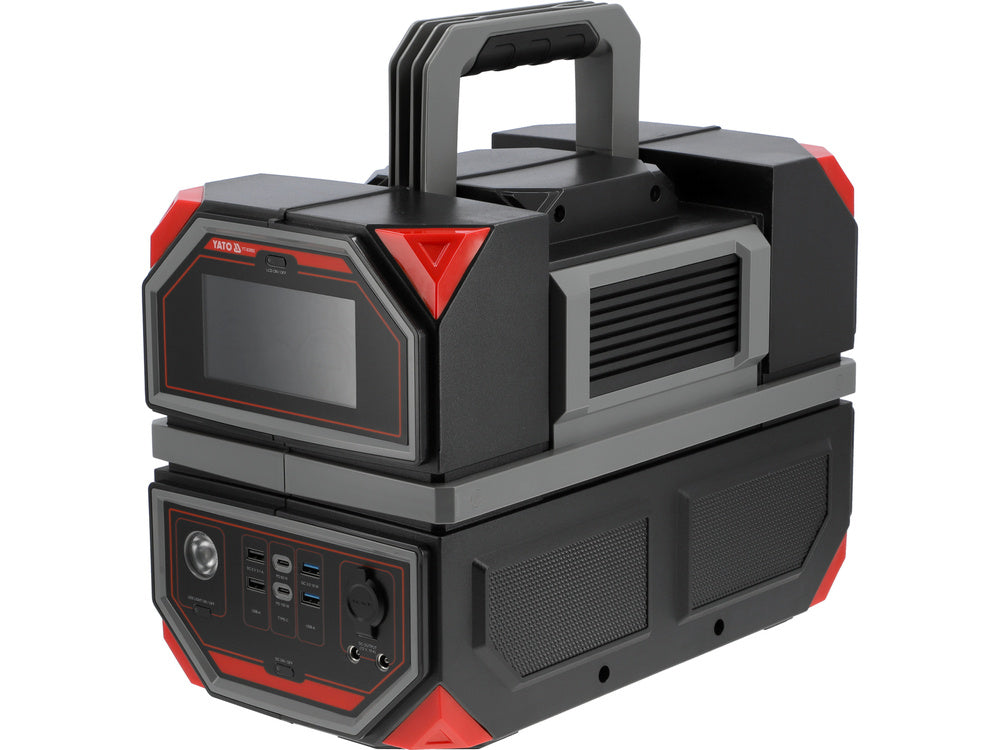

Nešiojama maitinimo stotis 1200 W SU UPS, 917 WH, 230 V, USB-C PD | power bank (YT-83092)

YT-83092
PORTABLE POWER STATION 1200W WITH UPS, 917WH, 230V, USB-C PD
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Power
1200 W
Dimensions
387x285x219 mm
Storage temperature
10~30 C
Kit contents

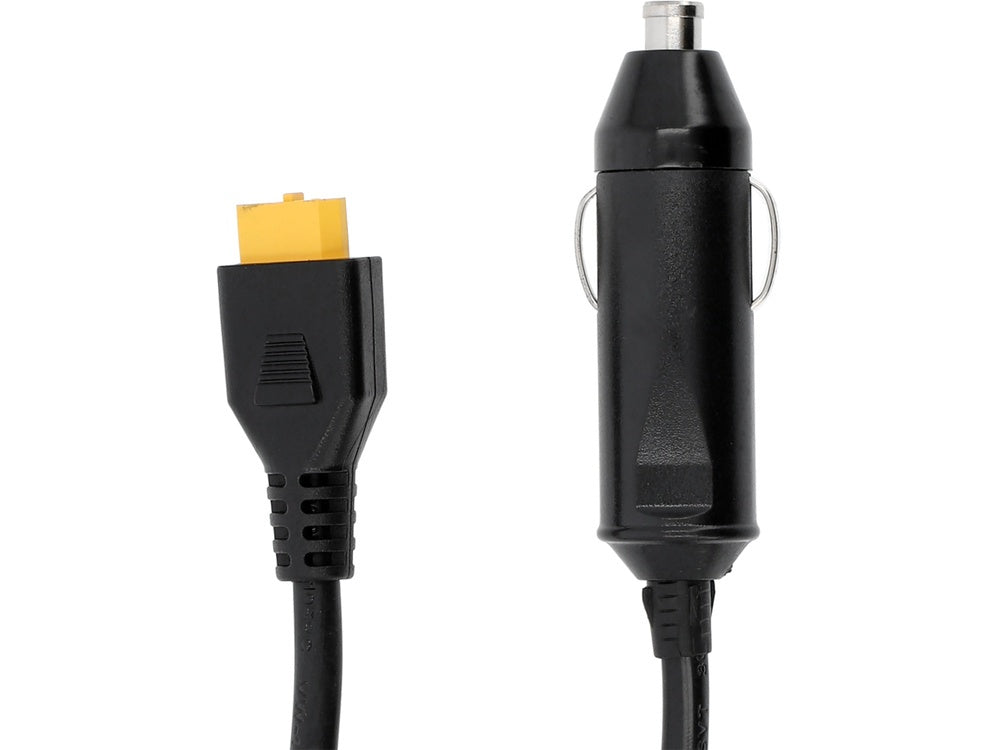

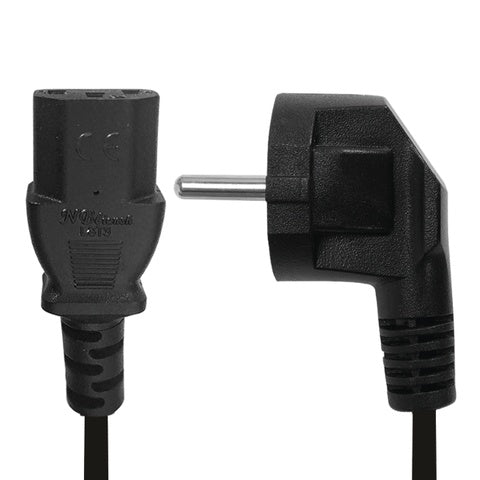

station, power cable, cable for charging the product from a 12V DC electrical installation, cable for charging the product from an external solar panel
Weight
12 kg
Efficiency
80 %
Protection class
IP20

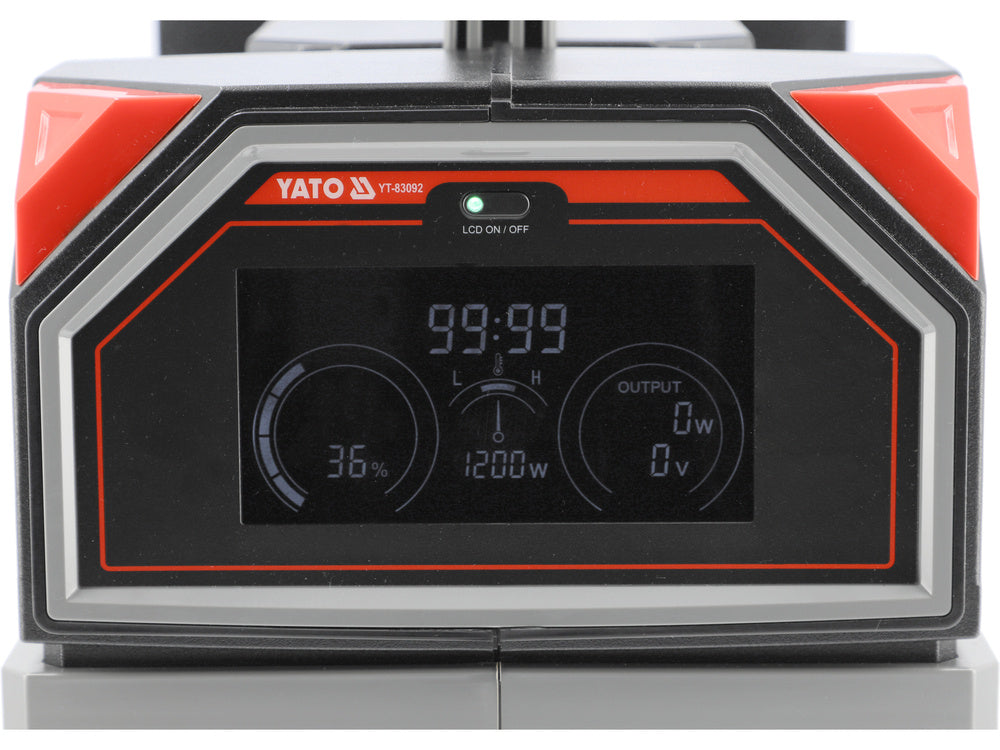

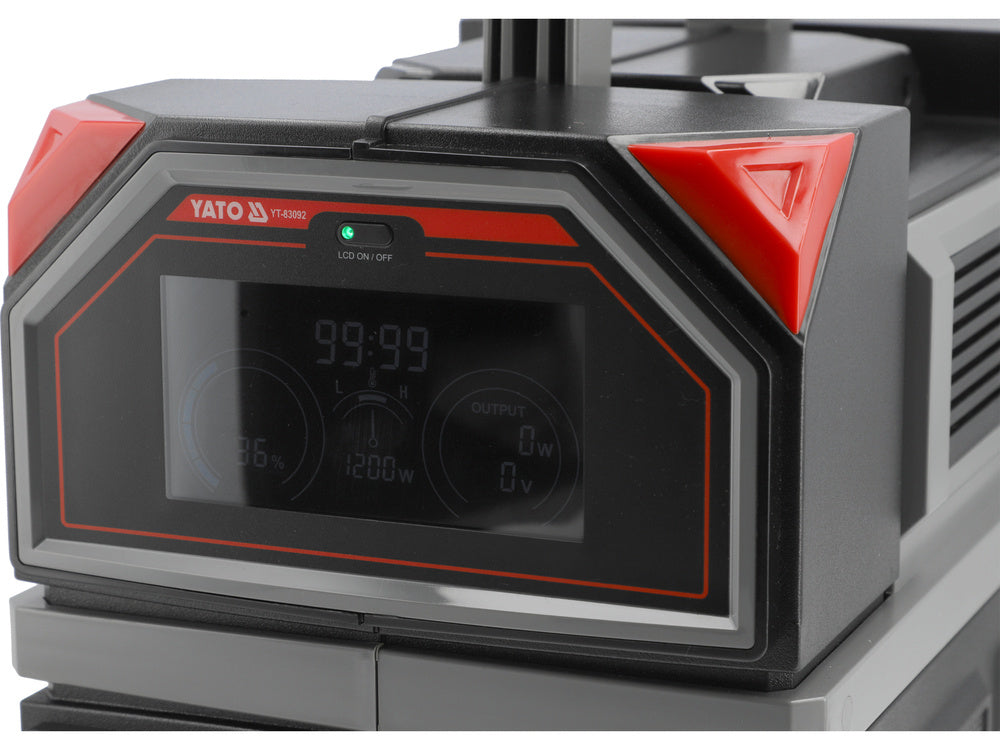

Display type
LCD
Battery capacity
36400 mAh
Electrical insulation class
I
Functions
UPS
Flashlight function
yes
Battery voltage
25.2 V d.c.
Battery type
Li-Ion
Charger
directly from the mains socket, 12V car, charging from external solar panels
Battery energy
917.28 Wh
Maximum power
2400 W
Output signal characteristics
pure sine
Charging temperature
0~45 C
Discharging temperature
-20 ~ +60 C
Protection
BMS: overcurrent, short circuit, over discharge / overcharge / overvoltage / overheating,
Inverter protection cont.: undervoltage / overvoltage / short circuit / overload / overheating
Symbol
YT-83092

Portable battery power station with a capacity of 917 Wh with UPS function. It will support eleven devices at once. The built-in bidirectional AC converter with a pure sine wave with a rated power of 1200 W (peak power up to 2400 W) will work as an emergency power source for, among others, a pump and a central heating furnace controller, a router, a desktop computer, most power tools and many other devices. Six USB ports, including two USB-A in Q.C max 18 W technology, two USB-C in PD 60 W and PD100 W technology, will power and charge a smartphone, tablet or laptop multiple times. The 12 V socket will successfully power a tourist fridge or dedicated lighting. Two sockets with a 12 V jack output can be used, for example, to maintain voltage in the car while charging the battery. UPS function ensures the continuity of operation of connected devices in the event of a power failure, it will support devices with a total rated power of 500 W. In the event of a power failure, the module will switch the mains power supply to battery power in no more than 20 milliseconds (unnoticeable to the devices)
the energy reserve at full charge and constant consumption of 500 W is enough for about two hours of continuous operation
a built-in power bank with 98 Li-Ion high discharge rate cells in NMC/INR technology in a 18650 housing with a nominal voltage of 3.6 V and a capacity of 2600 mAh (total 254800 mAh)
the capacity does not drop below 80% of the initial value even after 500 full discharge cycles
cells arranged in a solid basket with a design that provides free air access to each cell, which significantly improves cooling efficiency
advanced BMS system that monitors all current parameters and cell temperature in real time, ensuring the safety of the charging process and discharge
The BMS has overcurrent, short circuit, over-discharge, over-charge, overvoltage and overheating protection
The cell balancing system extends the life of the entire pack

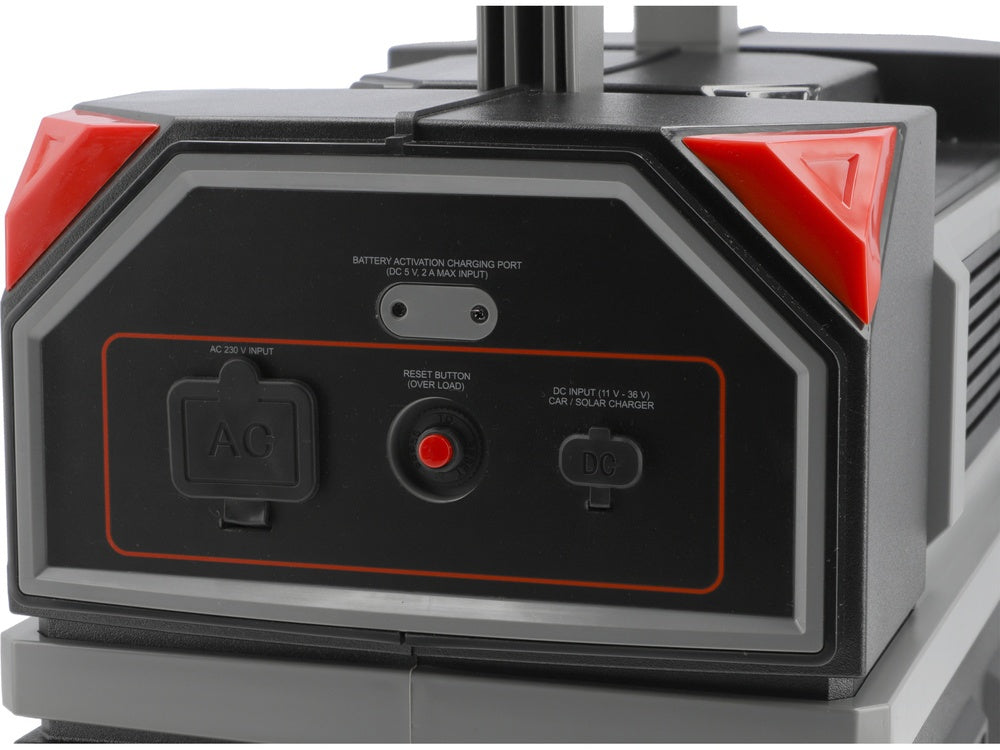

A special USB-C port to excite the cell pack - if we leave the station discharged to 0% for a long time and the device does not respond to the connected charger, we can excite the cells using a 5 V, 2 A power supply and restore the station and BMS to operation
The station can be charged in three ways: thanks to the bidirectional converter, fast charging directly from the mains socket, using a car lighter cable or from external photovoltaic panels
As one of the few on the market, it has a built-in MPPT charging regulator, which allows the full use of the energy supplied by the panels, without cutting off excess voltage
Manufactured according to automotive standards
Additional information:

Harmonic distortion factor (THD) at full load: 3%
Operating time at rated device load (1200 W): 40 min
charging time from mains socket: ~1.4 h
charging time from car cigarette lighter: ~6-9 h
charging time from photovoltaic panels: ~6 h

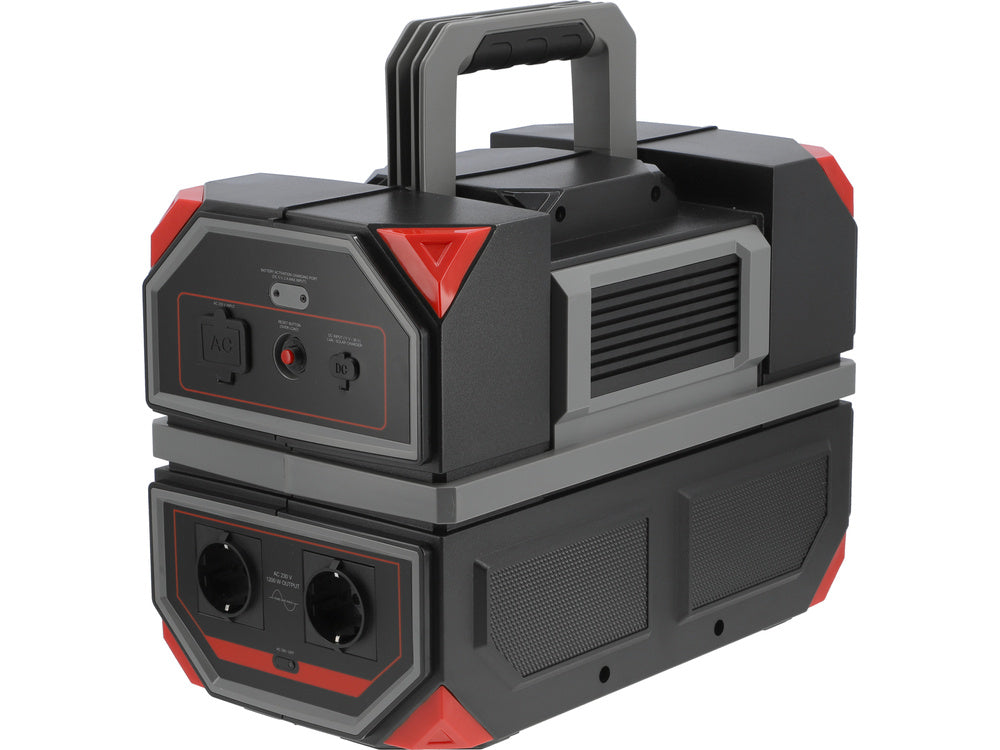

continuous power from AC 230 V sockets: 1200 W (2400 W at peak)

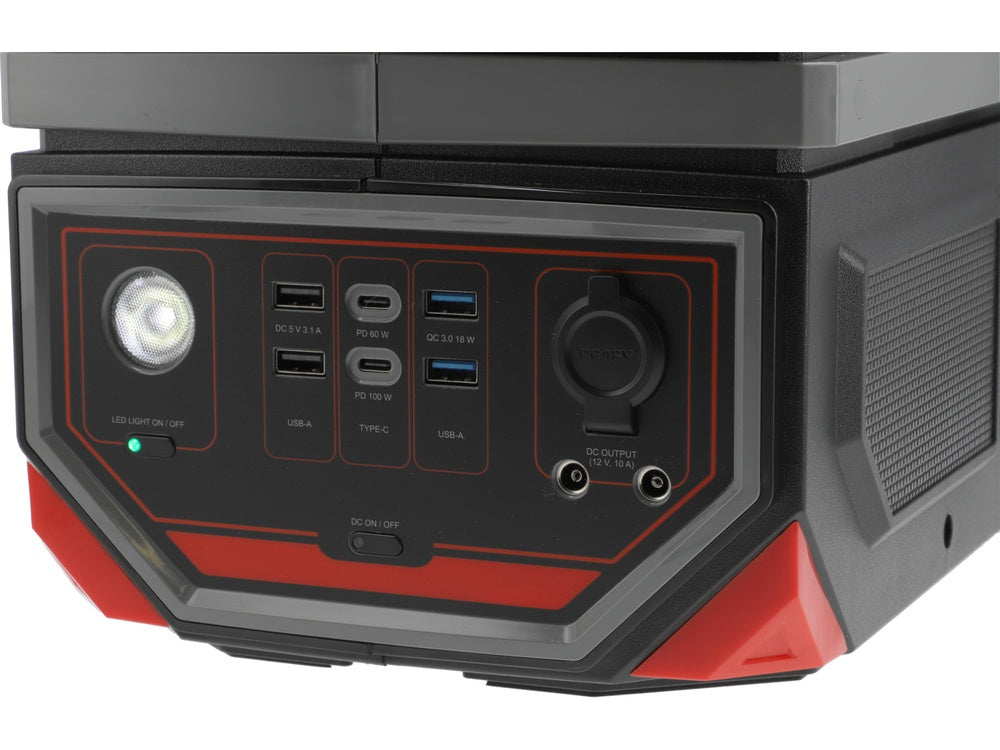

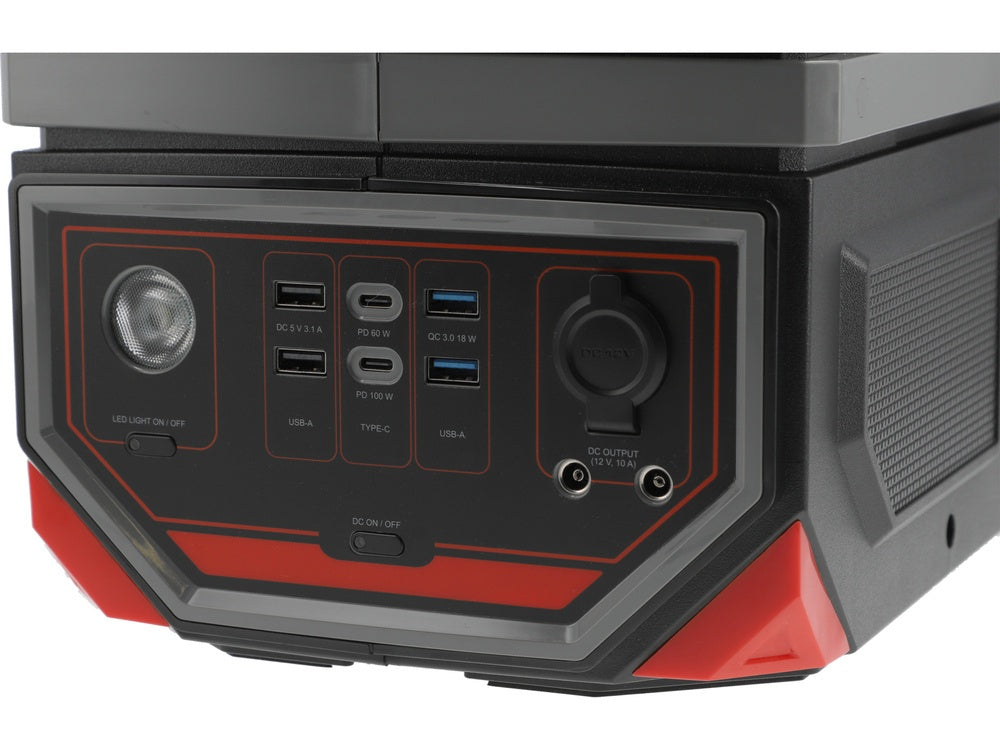

cigarette lighter socket: 12 V/10 A
2 jack sockets: 12 V/10 A
2 USB-A sockets: 5 V/3.1 A
2 USB-A sockets: 18 W in Q.C. technology 3.0
2 USB-C ports: 60 W and 100 W in PD technology
BMS protection: overcurrent, short circuit, over-discharge, overcharge, overvoltage, overheating
inverter protection: undervoltage or over-voltage, short circuit
LED light with 3 modes, including SOS, with a power of 2 W
dimensions: 387 x 285 x 219 mm
weight: 12 kg

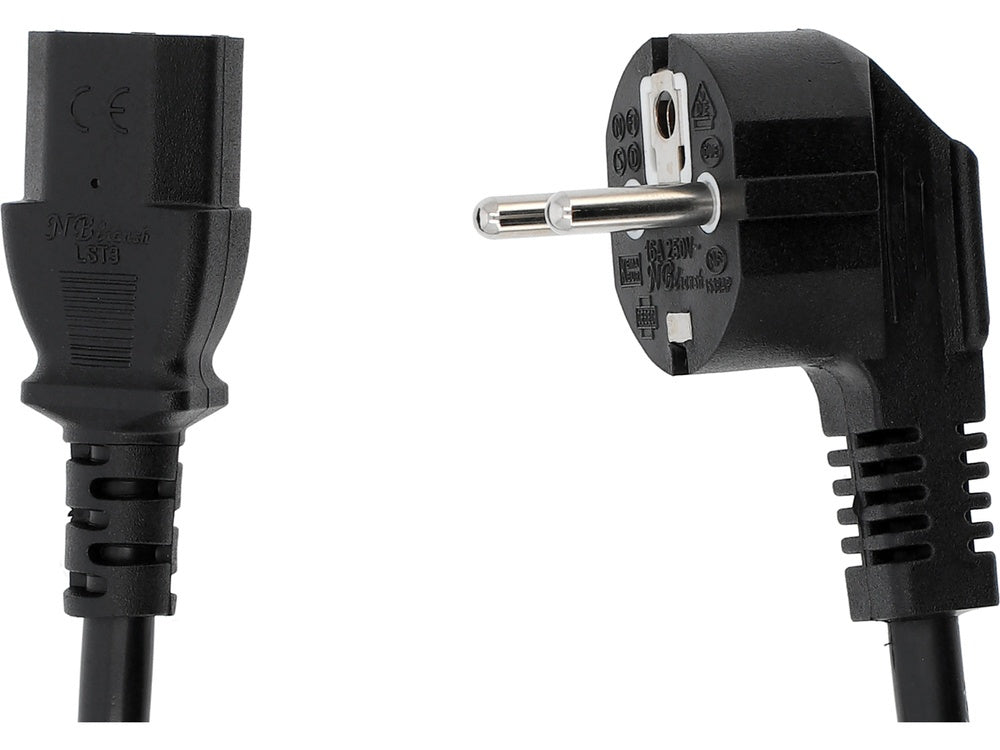

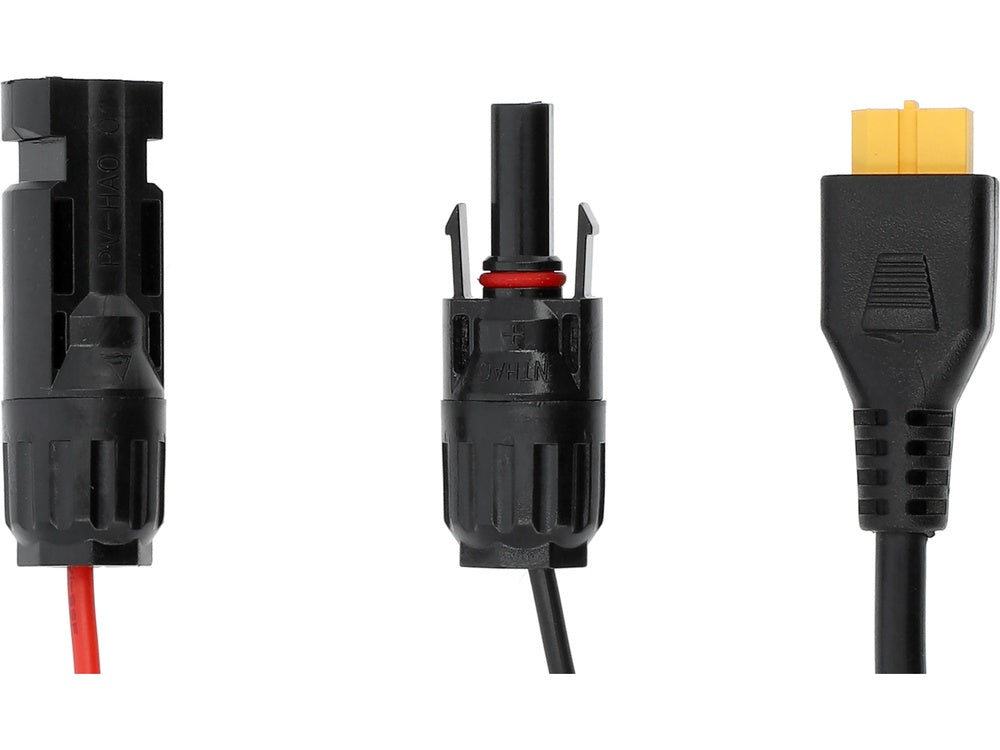

set contents: station, power cable, cable for charging the product from a 12 V DC electrical installation, cable for charging the product from an external solar panel
