THERMAL CAMERA 96X96 (240X240 IRS) 18HZ (YT-72920)

Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Series
GRF
Temperature measuring range
-20 ~ +150 / -4 ~ +302, 100-550 / 212-1022 C/ F
Operating relative humidity Rh
10-85 %
NETD (thermal sensitivity)
60 @ 25C, F/1.0 mK
Temperature measurement accuracy
2C / 2%
Battery type
Li-Ion
Battery voltage
3.7 V d.c.
Battery capacity
2000 mAh
Charger type
USB Type-C
Charging current
1 A
Max. working time
4 h
Dimensions
208x60x9x75x9 mm
View angle
50x50
Internal memory
8 GB eMMC, of which approx. 6.5 GB available to the user
Recording format
JPG (images), MP4 (video)
Image modes
thermal image, thermal image with contours from visible camera overlaid, visible camera image with temperatures overlaid
Color modes
rainbow, iron red, warm red, warm white, warm black
Effective resolution
240x240 px
Visible light image resolution
640x480 px
Infrared detector resolution
96x96 px
Screen refresh rate
18 Hz
Menu languages
Polish, English, Ukrainian, German, Italian, Chinese
Auto power off
5 min, 20 min, possibility to disable function
Data export
USB (connection to computer)
Input voltage
5 V d.c.
Working temperature range
-5 ~ +45 C
Storage temperature
-10 ~ +50 C
Weight
249.5 g
Symbol
YT-72920

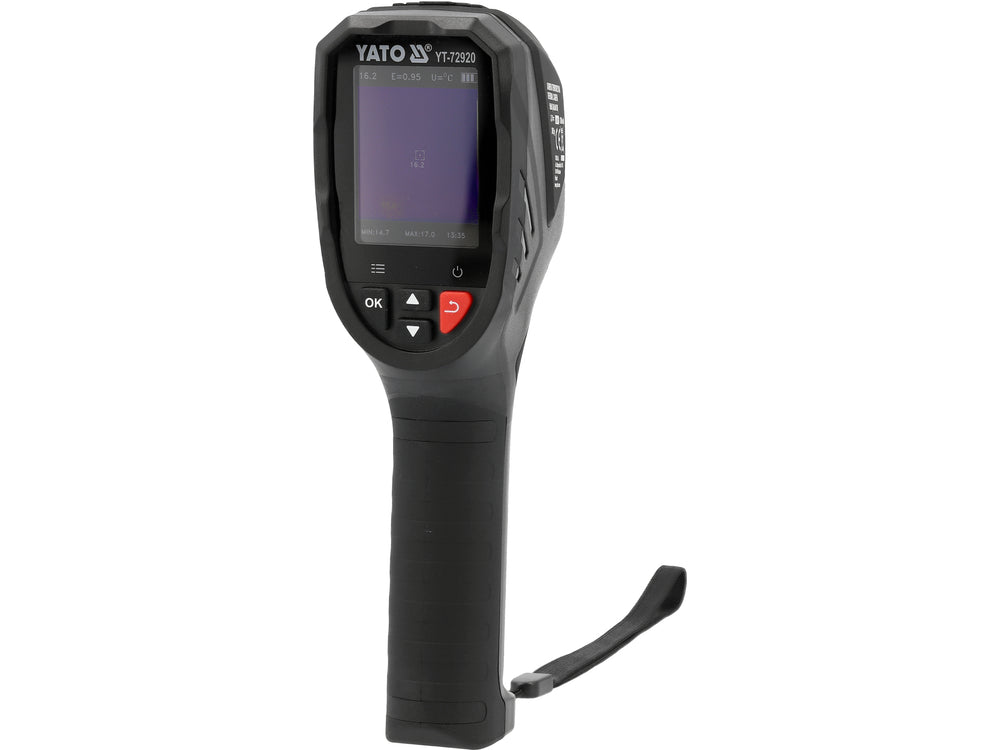

Thermal imaging camera YT-72920 is a compact diagnostic tool with great capabilities. Equipped with a VOx microbolometer (based on vanadium oxide) with a native resolution of 96 x 96 px, which, thanks to Super Resolution technology, generates thermal images with an effective resolution of 240 x 240 px. Combined with a relatively fast refresh rate of 18 Hz, it allows for detecting temperature differences and transforming them into a smooth and clear image. The higher the resolution and refresh rate, the smoother and clearer the image.

With it, we can detect thermal bridges in a few seconds, which are places where heat escapes from our home/apartment. Locating them is the first step in reducing heating bills and eliminating areas for mold growth. After preparing the underfloor heating system, the camera can help check its efficiency (whether it is air-locked) and detect any leaks.

This compact, lightweight device is designed for quick thermal diagnostics in the field - both for professionals and for home use.

Main technical features:

thermal detector: VOx microbolometer, no cooling, with a resolution of 96 x 96 px
effective thermal image resolution: 240 x 240 px (Super Resolution)
spectral range: 8-14 m
NETD: 60 mK @ 25C - high thermal sensitivity allowing for detecting small temperature differences
pixel size: 12 m
lens focal length: 1.35 mm
field of view (FOV): 50 x 50
focus: fixed - no need for adjustment
Temperature measurement:

measurement ranges:
mode 1: -20C ~ +150C
mode 2: 100C ~ 550C
accuracy: 2C or 2% (whichever is higher)
measurement sensitivity: 0.1C
measurement modes: point measurement (center), detection of maximum and minimum temperature
emissivity: manually adjustable in the range of 0.01-1.00
Imaging and recording:

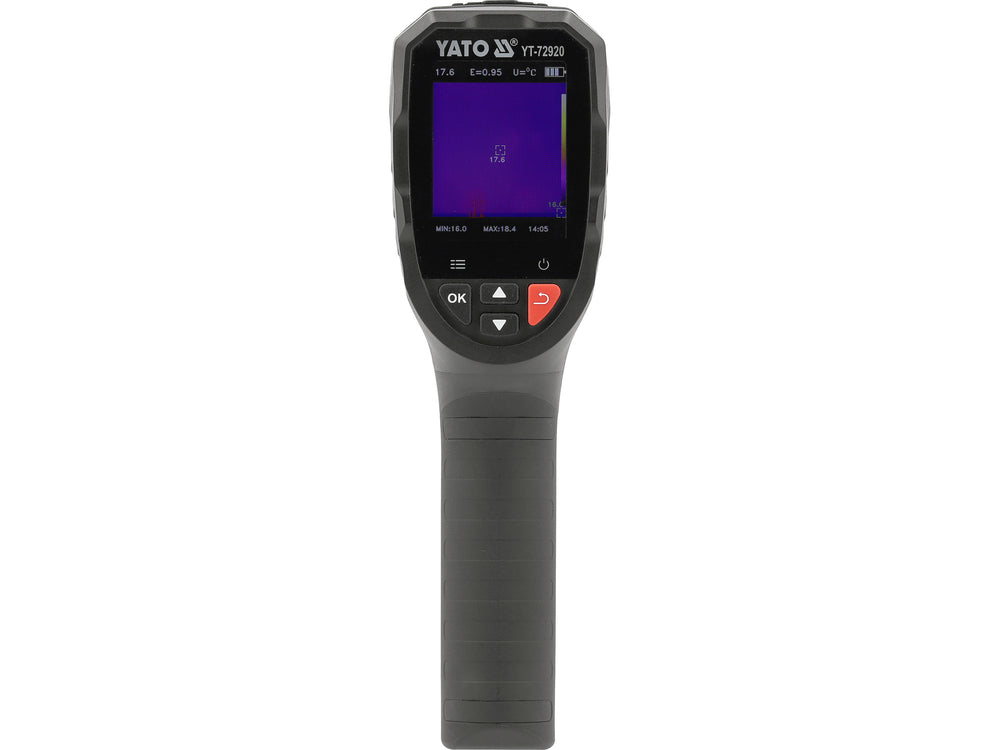

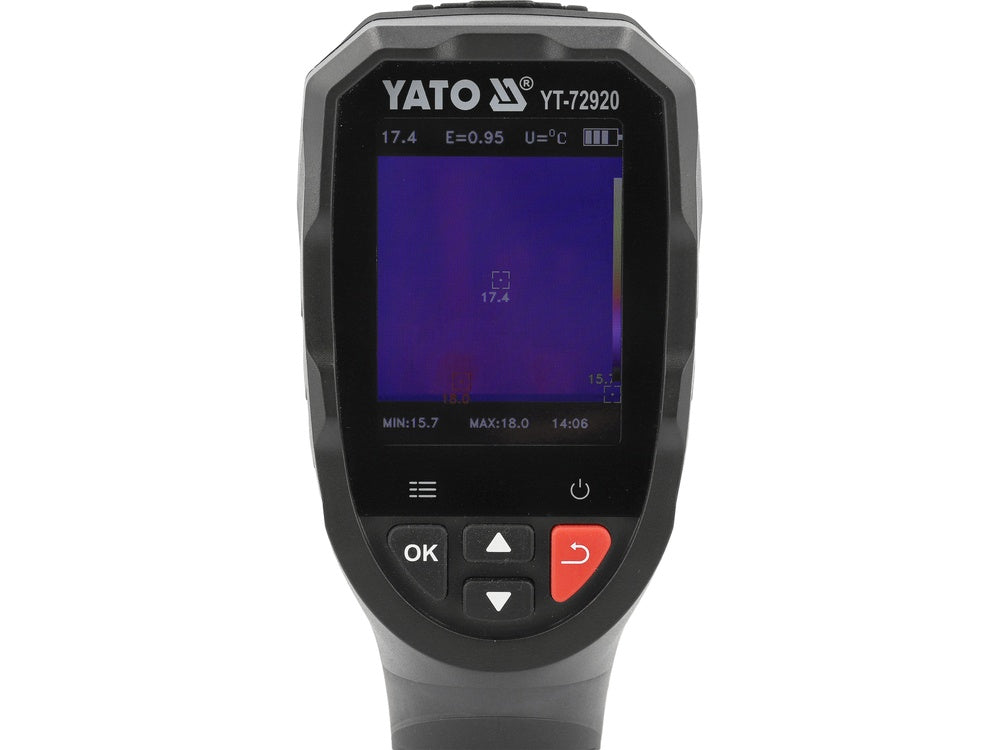

display: color LCD screen 2.4" with a resolution of 240 x 320 px

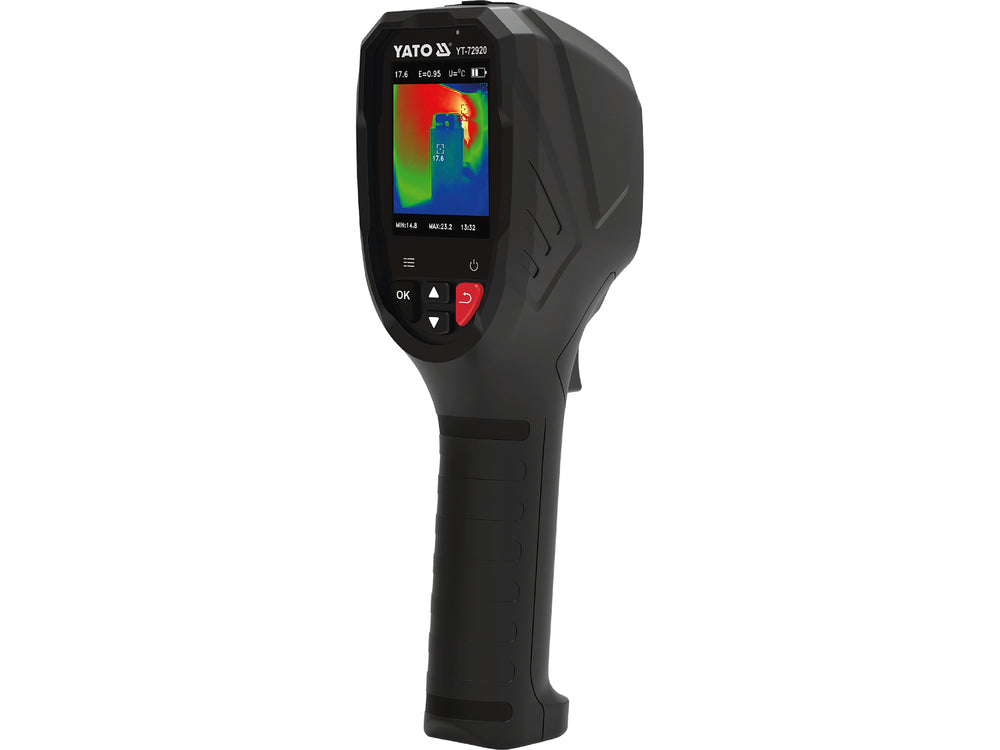

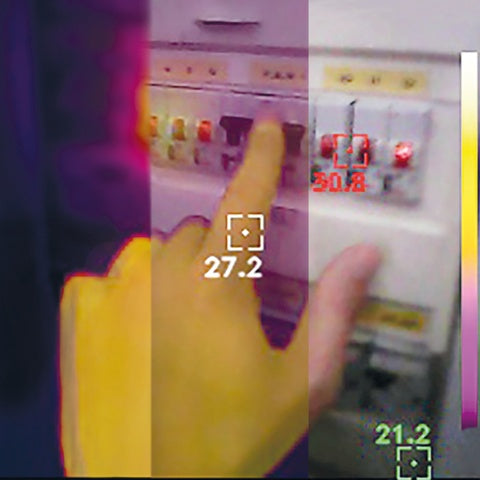

three image modes: thermal image only, image from a regular camera with simultaneous temperature measurement, mixed image (overlap of images can be adjusted in camera settings)

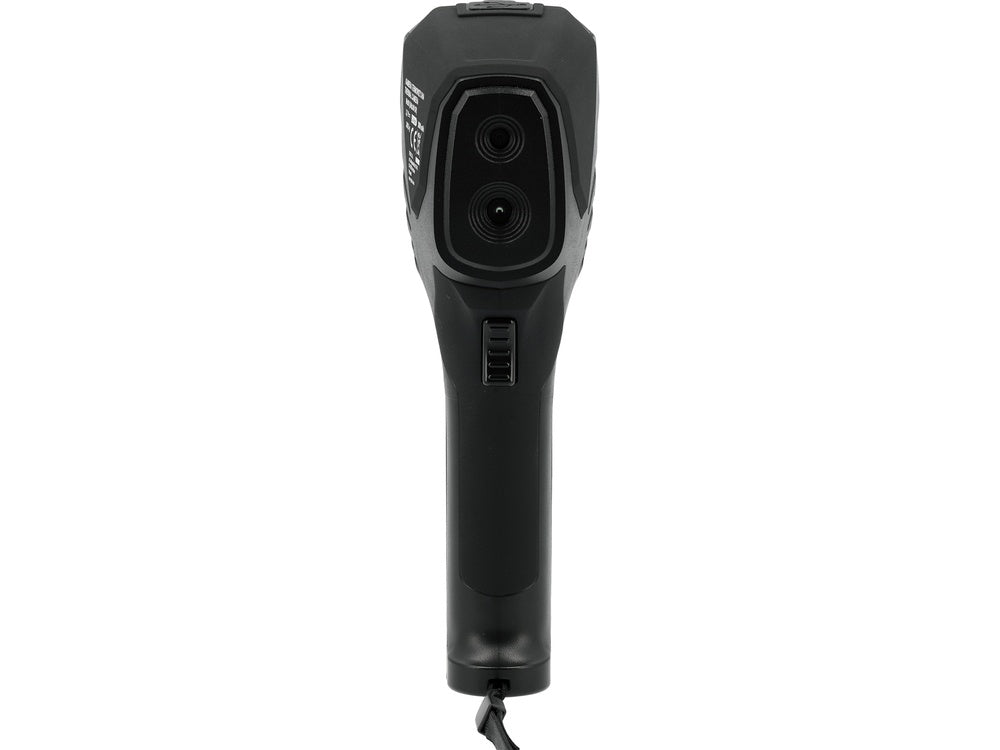

visible light camera: resolution 640 x 480 px
color palettes: rainbow, iron red, warm red, warm white, warm black
storage format: JPG (images), MP4 (video)
internal memory: 8 GB eMMC, with about 6.5 GB available to the user
data export: USB (connection to computer)
Power supply and operation:

battery: built-in Li-Ion 18650, 2000 mAh
working time: 4 hours of continuous operation

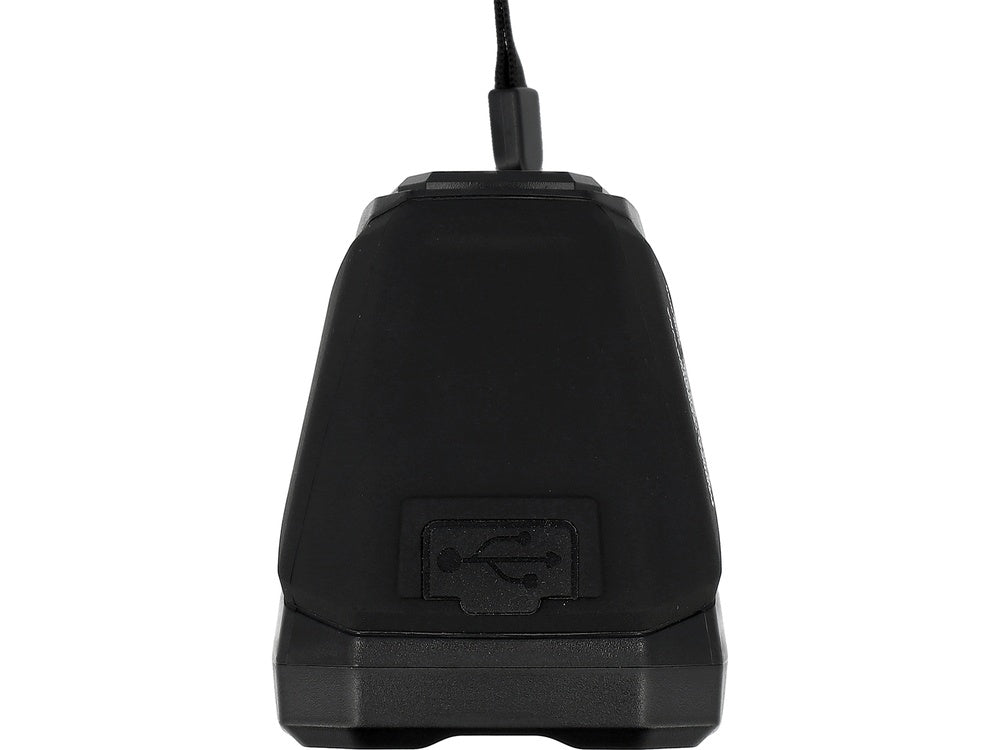

charging: USB Type C connector
auto power off: 5 min / 20 min / option to disable function
Operating conditions and housing:

ambient temperature during operation: -5C ~ +40C
ambient temperature during storage: -10C ~ +50C
ambient humidity: 10%-85% RH
dimensions: 208 x 60.9 x 75.9 mm
weight: 249.5 g
menu languages: Polish, English, Ukrainian, German, Italian, Chinese
