Electro-hydraulic battery changing platforms are specialized heavy equipment for auto service centers, designed for the safe and precise removal, transportation, and integration of electric vehicle (EV) battery modules. With the growing number of electric vehicles, these scissor lifts are becoming an essential standard for modern auto repair shops.
Purpose and Applicability
These platforms are optimized for working under a car that has already been lifted by a two or four-post lift. Although their primary purpose is to service massive EV batteries, their high lifting capacity (often reaching 1000–1200 kg) and wide worktable make them a versatile device.
- Supports and lowers entire battery packs of hybrid and electric cars.
- Used for the removal of internal combustion engines, large transmissions, or entire suspension subframes and axles.
- Serves as a mobile workbench for transporting heavy assemblies within the service premises.
Technical Advantage: Why is a Standard Jack Insufficient?
EV batteries are not only extremely heavy but also sensitive to mechanical damage. Standard transmission jacks do not have sufficient support area and stability to maintain battery geometry. Specialized platforms solve these problems:
- Spatial Stability: The double scissor mechanism ensures absolute center of gravity stability during lifting and lowering.

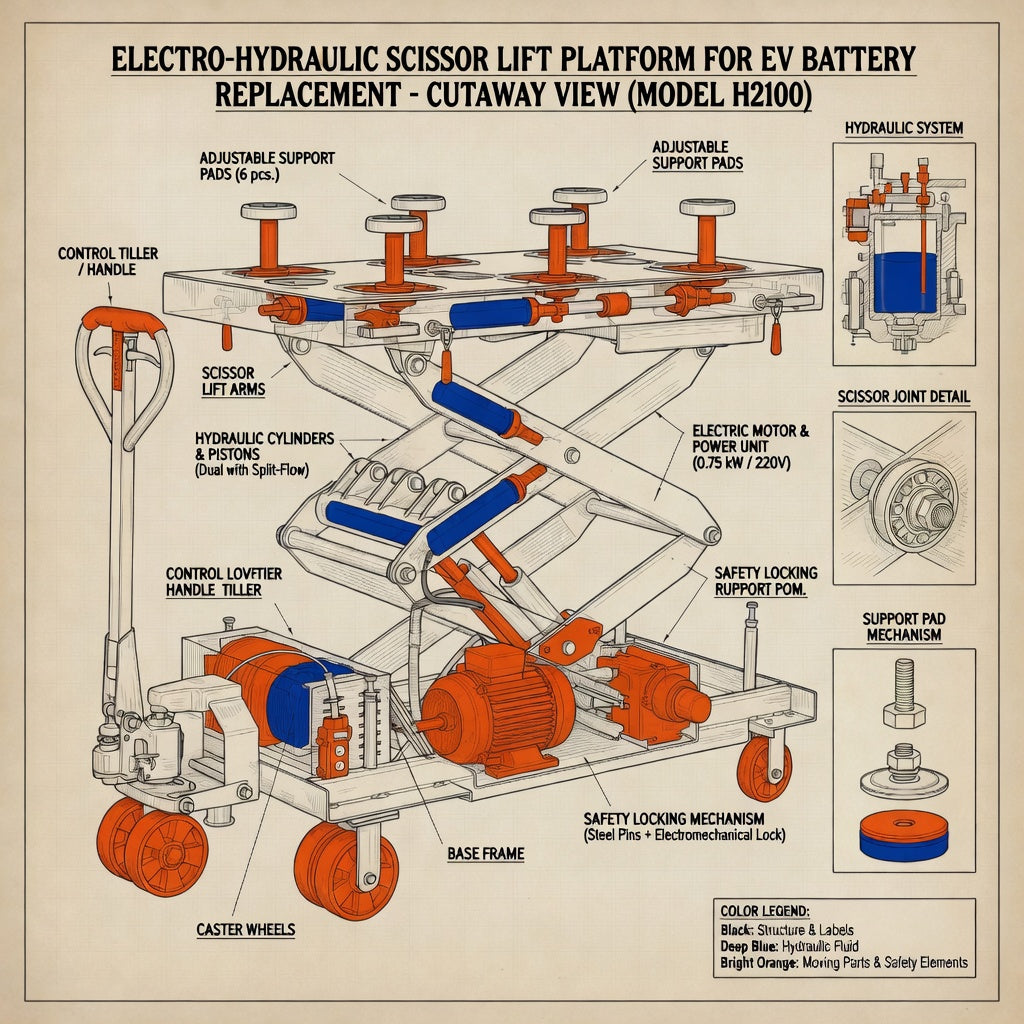

- Micro-positioning Table: This is the most important feature of these platforms. The top plate has an integrated adjustment mechanism, allowing the table to slide along the X and Y axes and adjust the tilt angle. This enables millimeter-precise alignment of dozens of battery mounting points to the vehicle body, preventing thread damage or contact damage.
- Even Load Distribution: Adjustable supports and modular clamps allow the platform to adapt to different battery shapes, ensuring even pressure on reinforced areas of the housing.
Principle of Electro-Hydraulic Mechanics
The operation of these devices combines the speed of an electric drive and the force of hydraulics:
- Lifting Phase: A compact electric motor integrated into the system (usually powered by mains or an internal 12V/24V battery) drives a hydraulic pump. The pump sends hydraulic fluid to one or more powerful cylinders. As the cylinder piston extends, mechanical force is transmitted to the scissor arms, which smoothly lift the worktable upwards.
- Control and Locking: Lifting is controlled via a remote or wired control panel, allowing the mechanic to move around the platform and monitor distances. Once the desired height is reached, mechanical safety locks engage, preventing the platform from lowering even if hydraulic pressure is lost.
- Lowering Phase: Lowering is performed by opening a proportional hydraulic valve. The fluid, pressed by the weight of the platform and load, slowly returns to the reservoir. Proportional control ensures that the massive battery is detached from the vehicle body without jerks.
