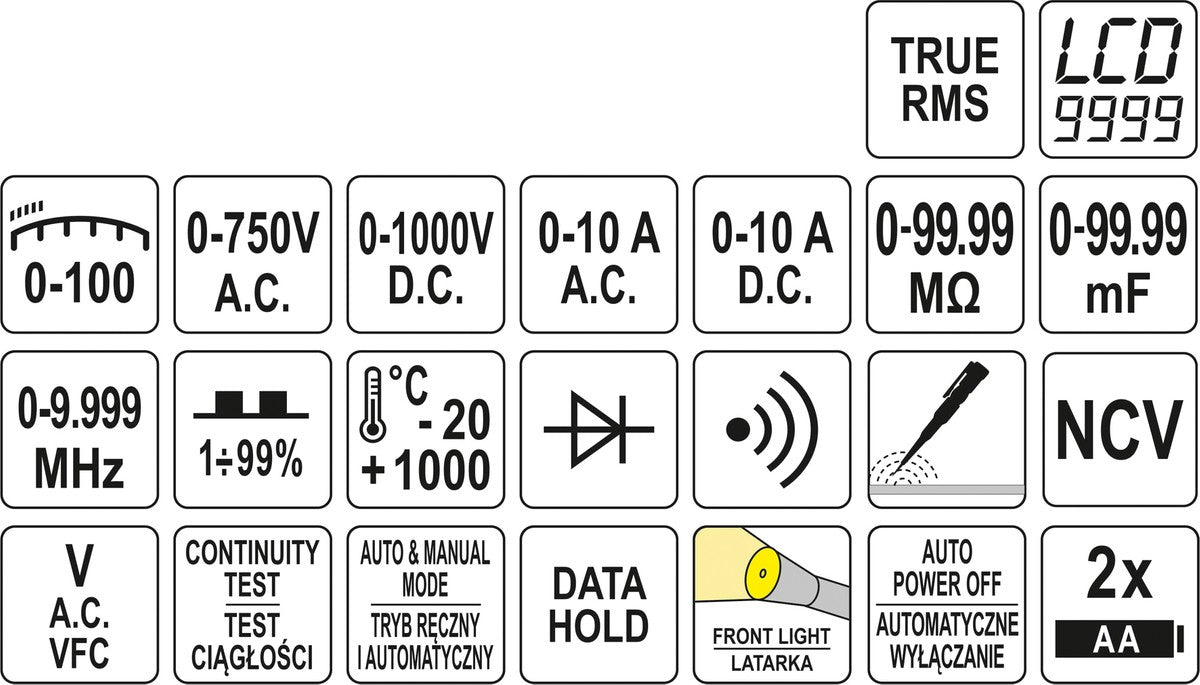

TRUE RMS DIGITAL METER WITH AUTOMATIC AND MANUAL LCD RANGE 9999
Automatic range: Yes
Frequency measurement: 0-9.999MHz
AC voltage measurement: 0-750V + True RMS + V.F.D.
DC voltage measurement: 0-1000V
Capacitance measurement: 0-99.99mF
Resistance measurement: 0-99.99M
Temperature measurement: -20 to 1000 C
Duty Cycle Measurement: 1-99%
Alternating Current: 0-10A + True RMS
Constant current: 0-10A
Continuity test: YES
Diode test: YES

Product description

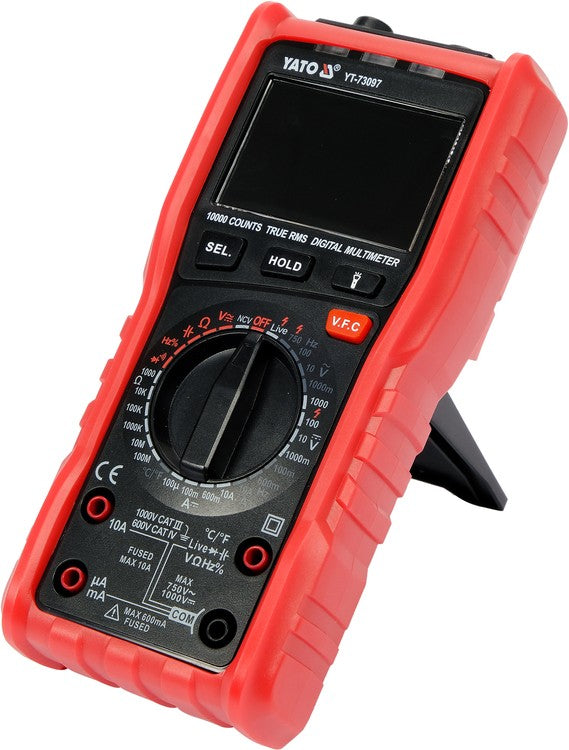

Universal meter YT-73097 with TRUE RMS function, with a unique design, with automatic and manual measuring range. It enables basic and advanced measurements of electrical quantities. The large multifunctional LCD display allows, in some measurement modes, to display two values at once, e.g. voltage and frequency from a power socket. The housing is equipped with a red rubber holster with dedicated places for test probes, thanks to which the meter will not slip easily from your hands and minimize the risk of damage during a fall. The modern design of the plate and special software mean not only the speed, accuracy and repeatability of indications, but also an increased level of safety, which is confirmed by obtaining CAT IV certification up to 600V.

BASIC MEASUREMENTS

AC voltage measurement: A.C. 0-750V, TRUE RMS + V.F.C.
DC voltage measurement: D.C. 0-1000V
AC current measurement: A.C. 0-10A, TRUE RMS
direct current measurement: D.C. 0-10A
resistance measurement: 0-99.99M
diode test: IF 1mA, UR 3.2V
continuity test: 0-30
ADDITIONAL MEASUREMENTS

capacitor capacity measurement: 0-99.99mF
frequency measurement: 0-9.999Mhz
measurement of the fill factor: 1-99%
temperature measurement: -20 to 1000 C
non-contact detection of alternating voltage: NCV
MEASUREMENT ACCURACY

An example of determining the accuracy for the measurement of AC voltage. Calculation for the measurement result: 235V

The accuracy of the measurement of the YT-73097 meter for this range is: (1.0% + 5), resolution 0.1V
calculation of measurement error formula: (measurement result x 1.0%) + 5 x resolution
calculations: (235 x 1.0%) + 5 x 0.1 = 2.35 + 0.5 = 2.85V
The real result, taking into account the measurement error, for the reading of 235V = 235 2.85V

result taking into account the measurement error for the DC voltage measurement indication: 12V = 12 0.09V
result taking into account the measurement error for the indication of the alternating current intensity: 8A = 8 0.15A
The table with the resolution and accuracy for a given measurement can be found in the user manual.

BUILT-IN FUNCTIONS

TRUE RMS - a meter with this function calculates the real effective value of AC voltage and current for both sinusoidal and non-sinusoidal waveforms. The device first measures the real value of the sine wave in several time intervals then squares the measurement results sums them up calculates the mean and finally the mean result takes the square root. The measurement result is a real RMS voltage / current, even for a deformed sinusoid or square wave.

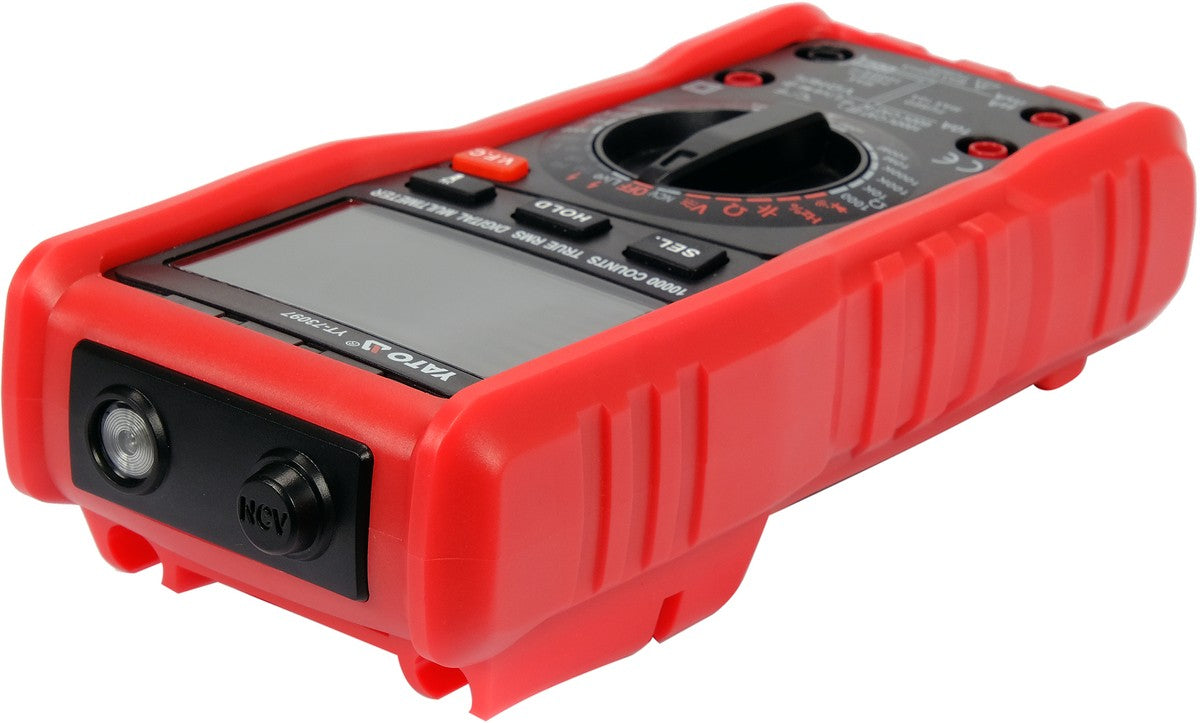

NCV - non-contact detection of alternating voltage with the induction method. The meter detects the presence of voltage in an insulated conductor using the NCV sensor on the front of the device
LIVE - phase presence test using one of the measurement probes. It allows you to check which of the holes in the electrical socket is in phase. Insert the measuring probe into the hole, if the phase is detected, the message LIVE will appear on the display
V.F.C. - low-pass filter. This function is used, for example, when measuring the output voltage of an electric motor controller, which uses the frequency and voltage variation to control the speed of the motor (VFD controllers). After activating the function, the meter filters out high-frequency disturbances, e.g. from the PWM signal, and leaves only the low frequency. This allows the filter to accurately measure the RMS voltage / current flowing to the motor
AUTO - automatic adjustment of the measuring range. If you measure unknown values with a handwheel manual ranging, take the measurements sequentially from the largest range up to the range giving the most accurate result - otherwise you risk damaging the device. However, in the case of a multimeter with the AUTO function, it is enough to take one measurement and the meter will automatically find the optimal range. The YT-73097 meter is a unique design, because in addition to the automatic measurement modes, it also offers basic electrical measurements on ranges set manually with the use of a knob, thus combining the advantages of both solutions. If we know the approximate value of the measurement and set the appropriate range, we will gain in the speed of indications
SEL - change of measurement mode, e.g. from AC to DC voltage measurement
HOLD - saving the currently measured value on the display
TORCH - On the front of the device there is a LED to illuminate the workplace, which can be turned on and off with this button
ADDITIONAL INFORMATION

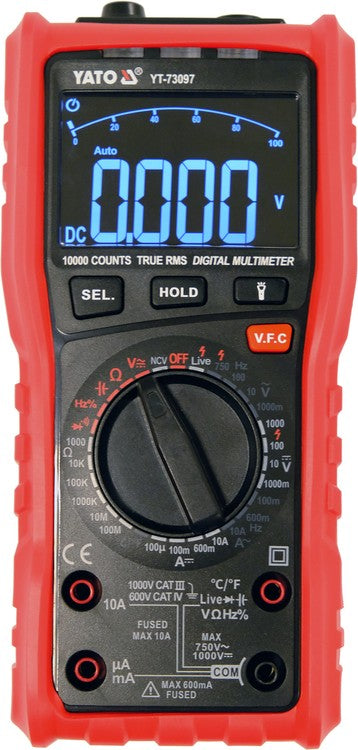

LCD display, the maximum displayed result: 9999
acoustic and light signal in the circuit continuity test for resistance below 30
automatic mode for diode and circuit continuity tests, in this setting the meter will detect whether it is a diode or a circuit with low resistance
diode and continuity tests can be turned on separately using the SEL button, in the continuity test setting, the buzzer will sound immediately

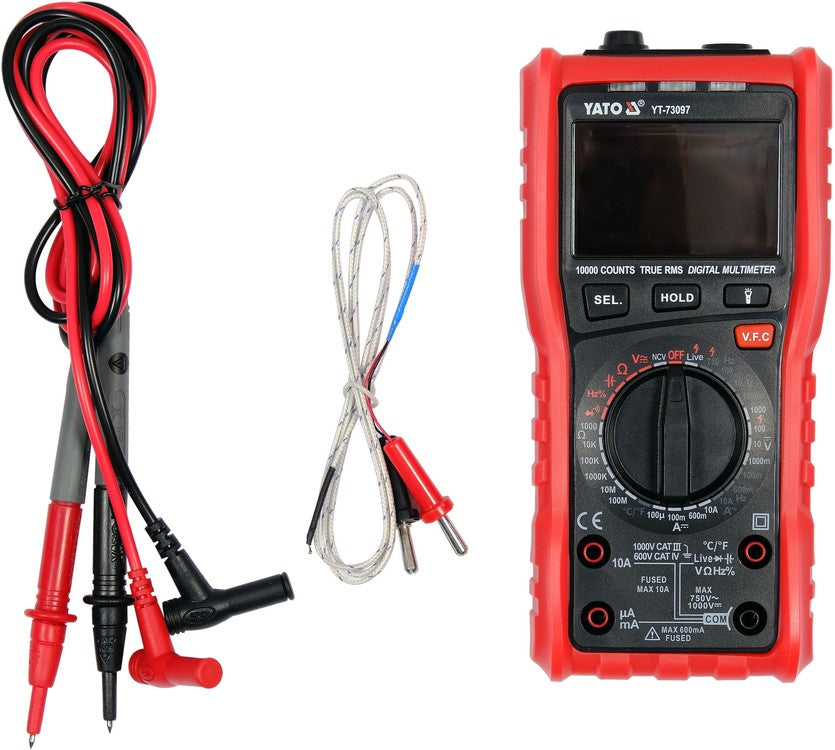

15 cm long test probes included
cable length with probes: 110 cm
wire diameter with insulation: 3.5 mm
construction with overload and protection protections for both current and voltage measurements
fuse blown alarm
alarm when inserting the test probe into an incorrect socket, e.g. if, after switching the meter on, you set it to measure voltage, and insert the measuring probe into the current measurement socket, the display will show the word LEAD
ABS housing
automatic shutdown of the meter after 10 minutes of inactivity
low battery indicator
power supply: two 1.5V (AA) batteries

Parameters
Auto range: YES
Frequency measurement: 0-9.999MHz
AC voltage measurement: 0-750V + True RMS + V.F.D.
DC voltage measurement: 0-1000V
Capacitance measurement: 0-99.99mF
Resistance measurement: 0-99.99M
Temperature measurement: -20 to 1000 C
Duty Cycle Measurement: 1-99%
Alternating Current: 0-10A + True RMS
Constant current: 0-10A
Continuity test: YES
Diode test: YES
