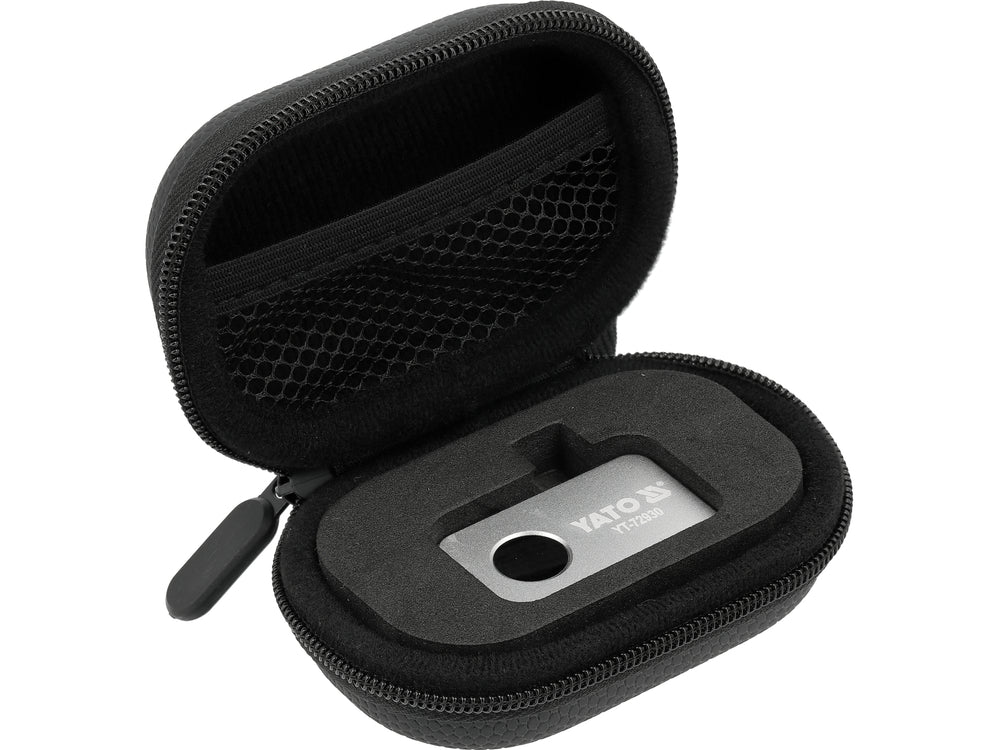

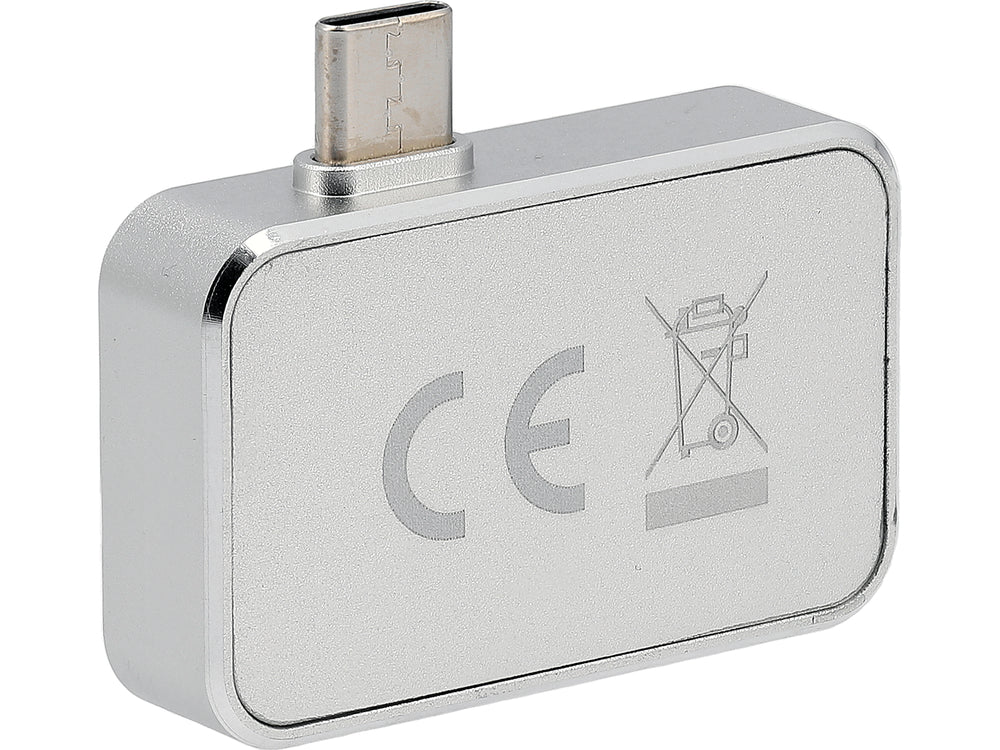

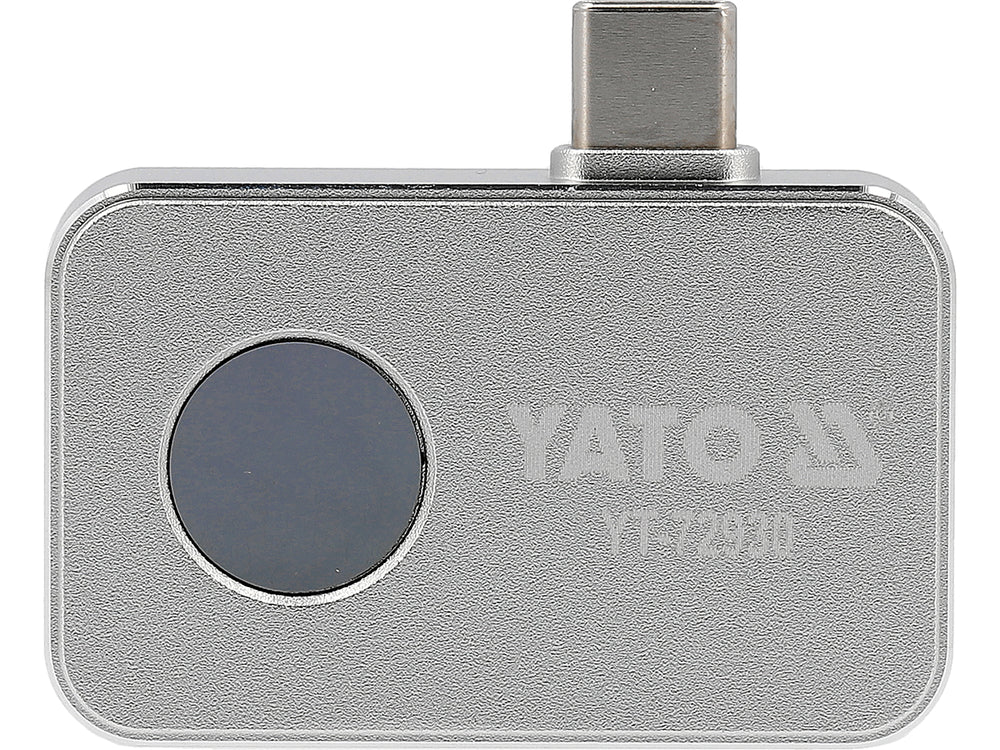

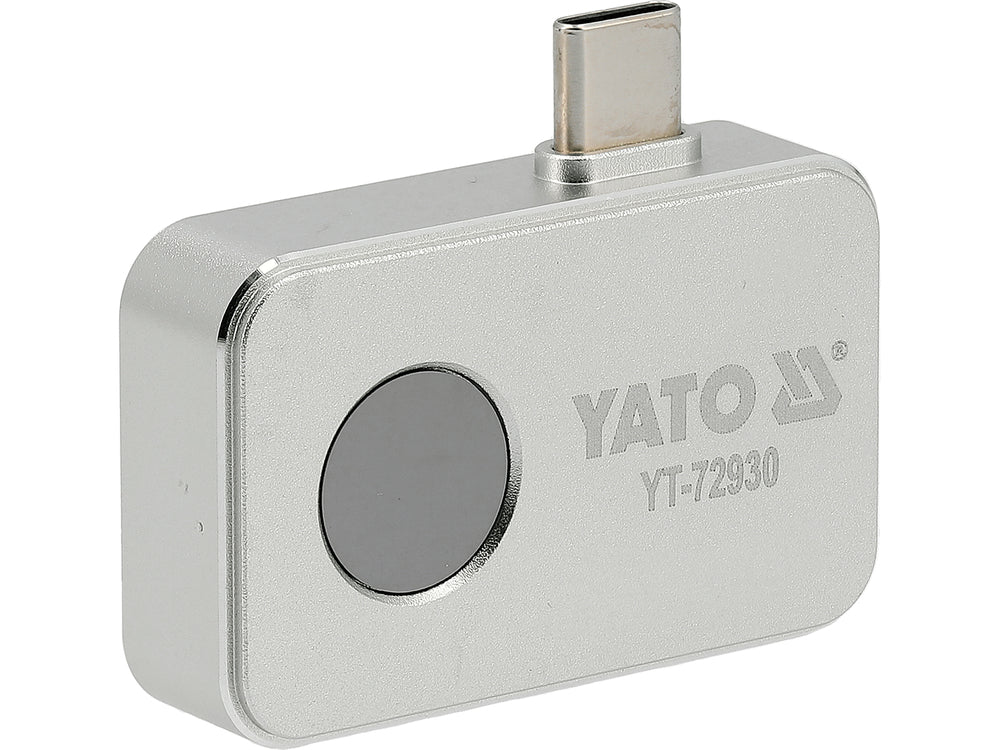

Miniature Thermal Imaging Camera | 256X192 (512X384) 25HZ USB-C (YT-72930)

Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Series
GRF
Power
0.35 W
Working range
0.25-5 m
Temperature measuring range
-15 ~ +150 / -5 ~ +302, 150-550 / 302-1022 C/ F
Operating relative humidity Rh
10-85 %
NETD (Thermal sensitivity)
50 @ 25C mK
Temperature measurement accuracy
3C (15 ~ 10C), 2C or 2% (10 ~ 550C)
Functions
controlled by a dedicated Android application
Measurement modes
point, linear, regional
Charger type
USB Type-C
Dimensions
45x36.7x11.5 mm
View angle
56x42
IFOV
3.75 mrad
Recording format
JPG (images), MP4 (video)
Sensor type
VOx microbolometer (vanadium oxide)
Color modes
10 (incl. rainbow, iron red, warm red, warm white, warm black)
Effective resolution
512x384 px
Sensor resolution
256x192 px
Screen refresh rate
25 Hz
Menu languages
Polish, English, Ukrainian, Russian
Data export
USB Type-C (connection to computer)
Input voltage
5 V d.c.
Weight
18 g
Application
electrical inspections and detection of overheated connections, detection of thermal bridges and heat loss in buildings, servicing of HVAC equipment, industrial and preventive inspections,
Application contd
automotive diagnostics and thermal testing of electronics
Symbol
YT-72930

Miniature thermal camera for Android devices - high resolution thanks to Super Resolution.

Turn your smartphone into a professional thermal camera. This compact device connected via USB-C allows for advanced temperature measurements and thermal imaging without the need for large, separate equipment. An ideal tool for technicians, service technicians, DIY enthusiasts, and professionals in the construction, electrical, and electronics industries.

A new quality of mobile thermography

The camera is equipped with a microbolometer with a native resolution of 256 x 192 px, which, thanks to Super Resolution technology, generates an image with an effective resolution of up to 512 x 384 px. This is over 4 times more detail than in the base mode. Combined with a high refresh rate of 25 Hz, you will be able to see the smallest temperature changes in a smooth and visually pleasing way.

SR MODE

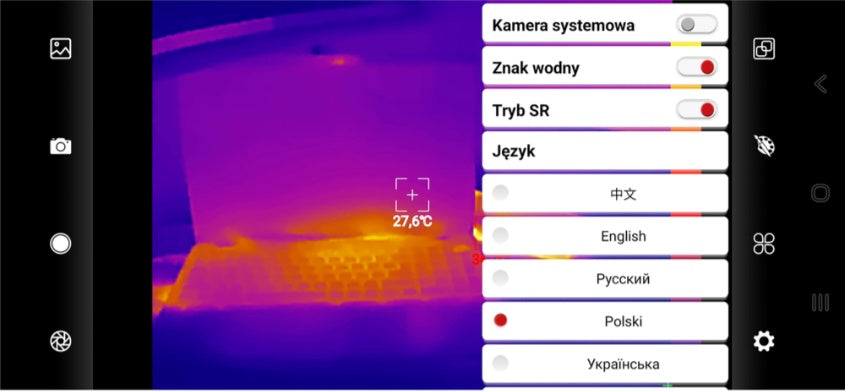

Controlled by a dedicated Android application

Simply connect the camera to the USB-C port and launch the free app (available for download from the Play Store). With it, you can:

view thermal images in real-time
measure temperature pointwise, linearly, or in a selected area (region measurement)
capture photos and videos (JPG/MP4 format)
use 10 color modes, including: White Hot, Iron Red, Rainbow, Black Hot
Technical specification:

sensor: VOx microbolometer (vanadium oxide)
sensor resolution: 256 x 192 px
effective resolution with Super Resolution: 512 x 384 px
pixel size: 12 m
NETD: 50 mK @ 25C - high thermal sensitivity
spectral range: 8-14 m
focal length: 3.2 mm (fixed focus)
field of view (FOV): 56 (H) x 42 (V)
IFOV: 3.75 mrad
image refresh rate: up to 25 Hz
Temperature measurement:

range:
-15C ~ 150C
150C ~ 550C
accuracy:
-15C ~ -10C: 3C
-10C ~ 550C: 2C or 2%
measurement distance: from 0.25 m to 5 m
measurement modes: point, linear, regional
emissivity: adjustable (0.01-1.00)
Functionality and interface:

power supply: via USB-C, DC 5 V
power consumption: 0.35 W
storage format: JPG (photos), MP4 (videos)
language menu: Polish, English, Ukrainian, Russian
weight: only 15 g
dimensions: 45 x 36.7 x 11.5 mm
Operating conditions and resistance:

operating temperature: -10C ~ +75C
storage temperature: -45C ~ +85C
humidity: 10%-85% RH
Where it will be useful?

electrical inspections and detection of overheated connections
detection of thermal bridges and heat loss in buildings
HVAC equipment servicing
industrial and preventive inspections
automotive diagnostics and thermal testing of electronics
